Performance for Everyone

Author: Lin Wang (Android Performance Engineer)

Default Feature

For mobile apps, performance is considered as the “default feature”, which means apps are expected to run fast and be responsive. It’s just as if we expect a watch to show the time. With no exceptions at Pinterest, we measure, protect and improve performance for all of our key user experiences’ surfaces, such as “Home Feed” and “Search Result Feed”.

Hard to Measure

Among all the performance metrics, the user perceived latency is a crucial one. It measures how much time the user spends since they perform an action until they see the content. This is also called “Visually Complete”.

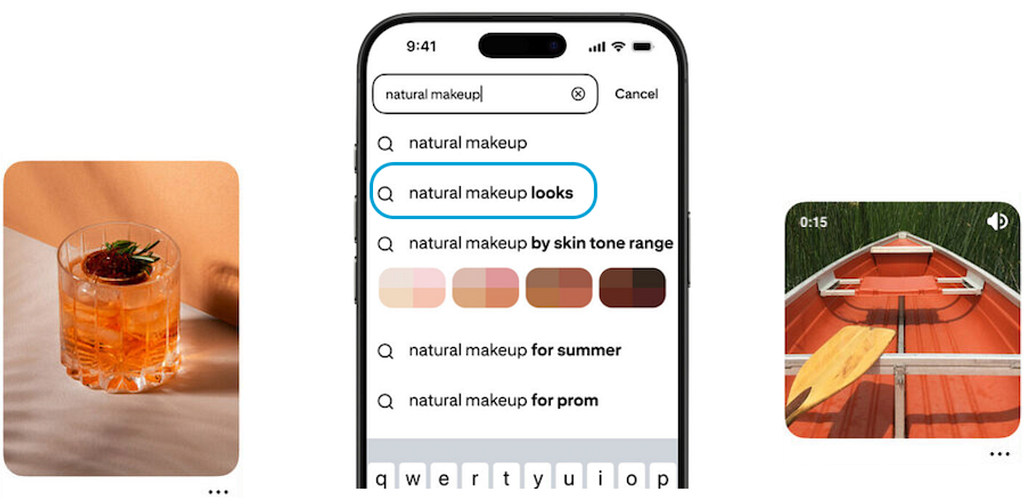

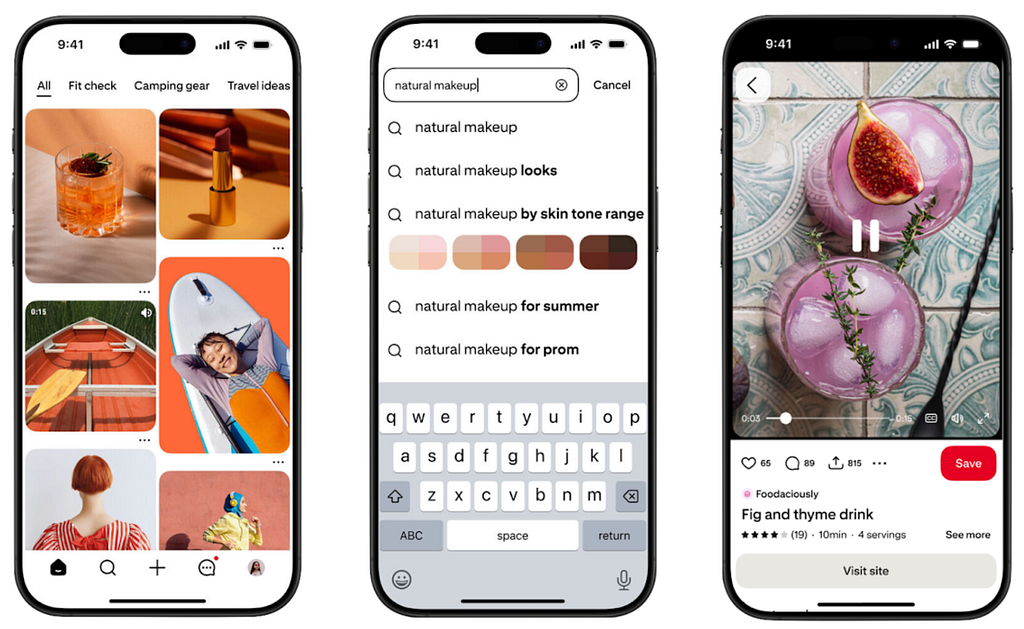

Visually Complete can be very different from app to app or even from surface to surface within one app. On Pinterest’s “Video Pin Closeup” surface, Visually Complete means the full-screen video starts playing; on our “Home Feed” surface, Visually Complete is defined as all the images rendered and videos playing; on our “Search Auto Complete Page”, Visually Complete refers to the search autocompleted suggestions’s text rendered along with the avatar images.

Given this dynamic nature of Visually Complete, engineers had to create customized measurement logic for each surface and that takes a lot of engineering effort and maintenance cost. This ends up as a major boundary for general product engineers to work on performance, especially on newly created surfaces. On average, it takes two engineer-weeks to implement a User Perceived Latency metric on the Android Client and wire it up to all the toolsets for production usage.

All-In-One Solution

Over the years, the performance team at Pinterest has been thinking about how to offer performance measures with the lowest cost to product engineers. Therefore, more product engineers can more easily have access to their feature’s user perceived latency information and work on performance.

Until recently, it seems we have found an answer to this. In a nut shell, we built the Visually Complete logic into the base UI class (e.g. BaseSurface). Therefore, the Perceived Latency of any UI surface (existing or new) will be automatically measured as long as the feature is built on top of this base UI class.

Walk the View Tree

First we define a few common media view interfaces: PerfImageView, PerfTextView, PerfVideoView. Each of them contains a few methods to report their rendering status: isDrawn(), isVideoLoadStarted(), x(), y(), height(), width(), etc.

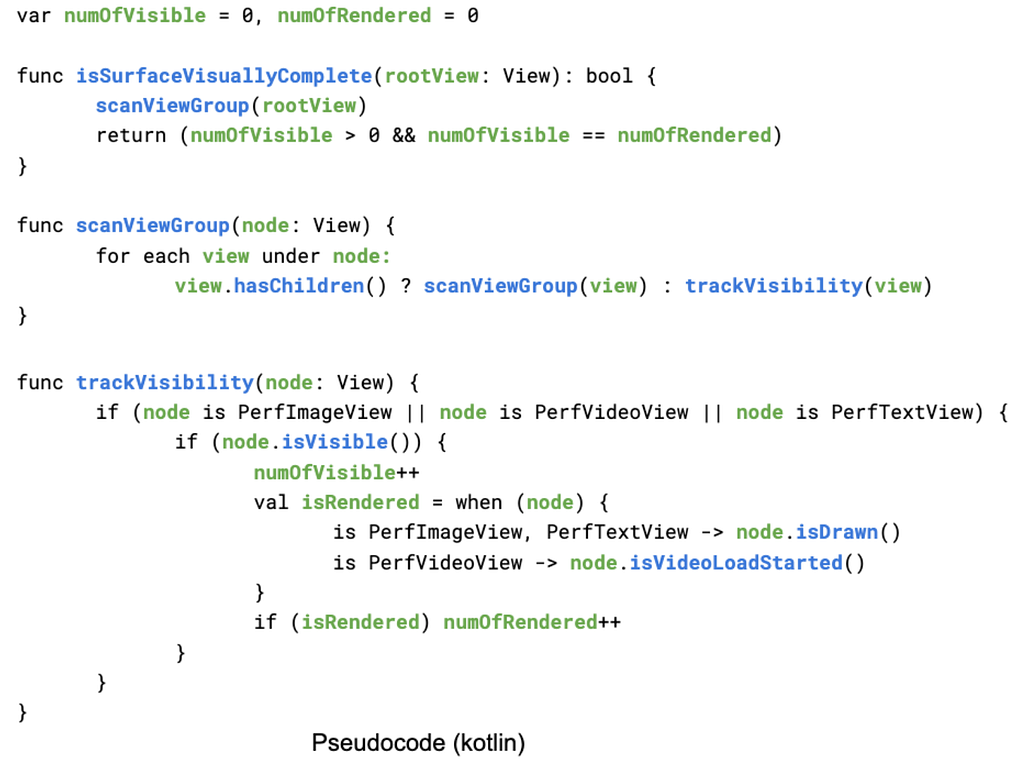

At the BaseSurface level, given that we should have access to the root android ViewGroup (e.g. RootView). We could just iterate through the view tree starting from the RootView by visiting all the views on this tree. We will focus on those visible views and judge if all the PerfImageView, PerfTextView and PerfVideoView instances are all drawn or started if it’s a video.

In Production

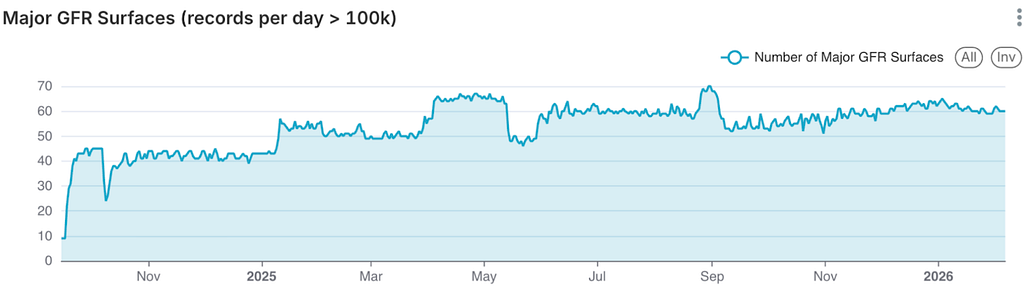

Since the release of this system on Android, it constantly visualizes the User Perceived Latency on over 60 surfaces at any given time. It is well received by many product teams and started to protect and improve their surface’s performance.

Interesting Cases

• Since all surfaces are measured by the same standard, we can compare multiple surfaces’ performance fairly.
• For some features with short shelf time (e.g. a Christmas landing page), we previously weren’t able to code their latency metrics in time, but now those latency metrics will be ready since the surface is built.

Conclusion

Once the performance metrics are offered to product engineers for free, it makes Pinterest’s performance more visible and encourages everyone to protect and optimize the User Perceived Latency on their surfaces.

Following the success on Android, we have also extended the same concept to iOS and web platforms.

Acknowledgements

Special thanks: Arun K
